Lightweight Stucco Cavity System on Fibre Cement Sheet.
Stucco dating back to the application of mixed clay plasters in pre Biblical times, has traditionally been used to decorate and protect buildings. Embracing this concept with the latest technology and selected additives, Stoanz has specifically engineered the StoLite System, a lightweight Stucco on backerboard which offers a proprietary system to clad timber framed construction.
Employing over 120 technical staff with a complex range of modern analytical equipment, Sto pursues innovative technology that will meet ecologically acceptable standards. Using this approach Sto has developed a comprehensive range of facade plasters, finishing renders and cladding solutions to enable the specifiers to select an individual style to meet the project requirements.
Download brochures for your electronic reference or product library.
StoLite Plaster System 12/15 mm
StoLite is a BRANZ appraised plaster system. It incorporates a lightweight mineral based basecoat to provide a thick solid base over the 4.5mm fibre cement sheet. The StoArmat RFP mesh reinforcement plaster incorporates micro fibres and lightweight fillers to provide strength and durability. Finished with the perfect interlocking components Stolit finishing render and Sto facade paint to complete the system. Using modern technology with enhanced and well engineered materials this lightweight Stucco cavity system provides a strong and durable solution for a high performance facade.
Click on each of the layers to the left to see the components of the StoLite Plaster System.
01
Substrate: Fibre Cement Sheet
02
Basecoat: LevelLite 8/10 mm
Lightweight EPS bead mineral plaster with good build properties, water retention agents and machine application properties.
03
Reinforcement: StoArmat RFP
European manufactured and certified, strong, malleable, impact resistant, white reinforcing plaster in a pail. Contains a calibration grain ensuring correct mesh coat thickness. (No cement)
04
Plus: Sto European Mesh
Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.
05
Finishing render: Stolit range
European manufactured and certified, organically bound, strong, hard wearing, impact resistant, pre-coloured finishing renders. (No cement)
Stolit K - (1mm/1.5mm/2mm/3mm)coloured finishing render. A range of coloured float finished self gauging granulated finishes.
Stolit MP & MP Natural - coloured finishing render. A range of coloured fine sponge finishes.
06
Coating:
StoColor Maxicryl - matt facade paint.
StoLastic Color - satin matt facade paint European manufactured and certified durable facade paints available in a full range of colours.
Click here to download the TDS.
StoLotusan Color G - mineral silicone resin European manufactured and certified self cleaning mineral paint with a breathable structure, in a full range of colours. Not recommended in dark or strong tints.
.
StoLite: The right choice for different requirements
The fibre cement sheet is available in following thicknesses 4.5, 6.0, 7.5 and 9.0 mm. By selecting the appropriate fibre cement sheet, the strength, bracing and acoustic properties of the exterior can be adjusted to meet the site conditions.

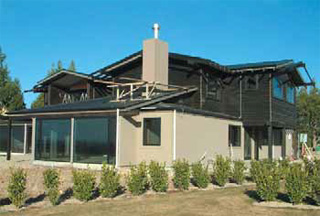

StoLite on a 4.5 mm fibre cement sheet.

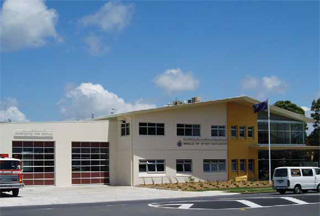

StoLite on a 7.5 mm fibre cement sheet.
Stolit: Coloured Finishing Renders
Stolit organic finishing renders are manufactured in Europe and certified around the world. They have been in successful use for over 50 years on a variety of different substrates. During this time they have undergone a continual process of optimisation.
The perfect combination of properties: Durable, strong, hardwearing, impact resistant, malleable, weather resistant, colour stable and highly resistant to micro-organism. They are designed with good vapour permeability to allow the building to breathe while still repelling liquid water. All renders are easy to apply and can be tinted from the StoColor System or matched to the colour of your choice, using the Sto spectrometer.
Coloured Self-Gauging Float Finish Renders: |
|||
 |
 |
 |
 |
StolitK 1.0mm |
StolitK 1.5mm |
StolitK 2.0mm |
StolitK 3.0mm |
StoTherm Classic System: |
|||
 |
 |
||
Stolit MP |
Stolit MP Natural |
The Perfect Finish: Competence in Colour
Download a technical specification for StoTherm from the list below. This specification is also integrated into the MasterSpec - 4281 SL - Stucco. If you have any questions, please do not hesitate to contact us for technical support.
StoTherm is appraised by BRANZ. Click below to download the BRANZ Appraisal Certificate.
Download CAD or PDF details for your project. Use the interactive detail selector below - roll over the hot spots to find and download the appropiate detail:
SL-100
StoLite Batten Layout
SL-101
StoLite Typical Backerboard Layout
SL-104
StoLite Plaster System Cross Section
SL-450
StoLite Balustrade Parapet
SL-451
StoLite Balastrade / Parapet - Building Wrap and Tape Position
Alternatively, select the link below to download a complete set of details below:
For a complete list of individual details, including CAD formats, please click here
Click here to hide details.
Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.
Last updated August 2011
