EPS / ICF / Polystyrene Block Construction


Render Systems for EPS / ICF / Polystyrene Block Construction



Overview

EPS / ICF / Polystyrene block construction is a snap together hollow block, constructed for a reinforced concrete mass masonry core that is pored into the supported EPS block walls. An established method in the New Zealand construction industry, combining the values and properties of diverse materials.



EPS / ICF / Polystyrene block is light, quick and easy in its installation, giving the designer the ability to form straight and curved walls with exceptional insulation and acoustic properties. The StoArmat Render System is fracture, impact resistant and engineered to provide optimal protection and finish with warranty, to compliment, protect and enhance this building element.








Brochure

Brochure
EPS / ICF / Polystyrene Block - StoArmat Miral Render Systems
PDF








Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



Polystrene Block Construction 1 Polystrene Block Construction 2 Polystrene Block Construction 3 Polystrene Block Construction 4



Polystrene Block Construction 5 Polystrene Block Construction 6 Polystrene Block Construction 7



Click here to hide images.












StoArmat Miral Render System

A BRANZ appraised high performance system to provide exceptional crack resistance and weather protection. Application includes a basecoat with LevelLite render to straighten any irregularities, Followed by StoArmat render and glass fibre mesh , providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20+ Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.









StoArmat Miral Render System
Click on each of the layers below to view the components of the system.







Component Builder eps_plaster_system_110 eps_plaster_system_120 eps_plaster_system_130 eps_plaster_system_121 eps_plaster_system_1400 eps_plaster_system_150



01

Basecoat: StoLevell Novo / LevelLite Mineral Render

Lightweight EPS bead mineral render (plaster) with good build properties, water retention agents and machine application properties.



levellite



02

Reinforcement Render: StoArmat

European manufactured. High flexibility, crack resistance of six times higher then that of cement based products plus durability against mechanical stress ensure the highest system reliability render (plaster) available. contains no cement.



sto bucket    stoarmat bend test



03

Plus: Sto European mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



04

Finishing Render: Stolit Range

European manufactured and certified, organically bound, strong, hard wearing, impact resistant, pre coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



05

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 515 (2007)

sto warranty

StoArmat 15 or 20+ Year Warranty with StoService Assurance












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint






TDS / MSDS

sto detail expand



Download a TDS or MSDS



Primers / Sealers:



TDS / MSDS
Sto Flexyl
PDF PDF



Reinforcement Mesh:



TDS
StoMesh 4mm
PDF
TDS
StoMesh 7mm
PDF



Reinforcement Render / Base Render:



TDS / MSDS
StoLevell Novo
PDF PDF
TDS / MSDS
LevelLite Mineral Render
PDF PDF
TDS / MSDS
StoArmat Render
PDF PDF



Finishing Renders:



TDS / MSDS
Stolit K 1.0mm
PDF PDF
TDS / MSDS
Stolit K 1.5mm
PDF PDF
TDS / MSDS
Stolit K 2.0mm
PDF PDF
TDS / MSDS
Stolit K 3.0mm
PDF PDF
TDS / MSDS
Stolit MP & MP Natural
PDF PDF
TDS / MSDS
Stolit Milano
PDF PDF



Coatings:



TDS / MSDS
StoColor X-black
PDF PDF
TDS / MSDS
StoColor Lotusan
PDF PDF
TDS / MSDS
StoColor Maxicryl
PDF PDF
TDS / MSDS
StoColor Lastic
PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download a Technical Specification



SS-707
StoArmat Miral on Polystyrene block
PDF



Download a BRANZ Appraisal



BRANZ Appraisal
EPS / ICF / Polystyrene Block - StoArmat Miral Render System - 515 (2007)
Branz Appraisal




CAD or PDF Details

sto detail expand



Download a Detail Set



EB-ALL
Sto EPS Block - Complete Set (1.7mb)
PDF





Download an Individual Detail

Drawing Register and Introduction Series 000



EB-001-2
Drawing Register
DWGPDF
EB-003
Sto EPS/ICF Block Plaster System - Introduction
DWGPDF



Block Layout Series 100



EB-100
Sto EPS/ICF Block - Construction
DWGPDF
EB-101
Sto EPS/ICF Block - Stotherm Plaster System
DWGPDF



Foundation Series 200

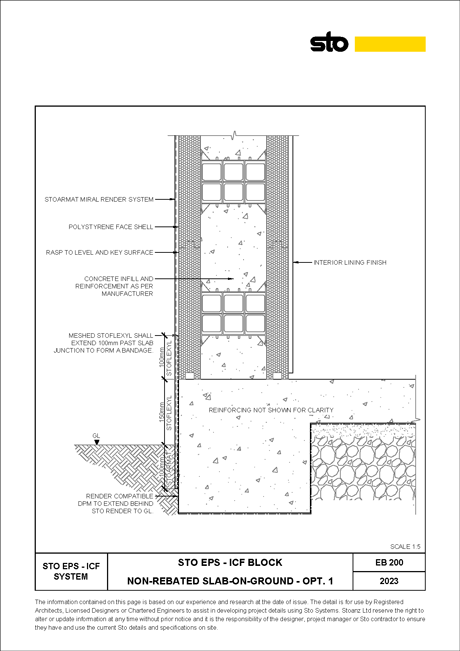

EB-200
Sto EPS/ICF Block - Standard Edge
DWGPDF

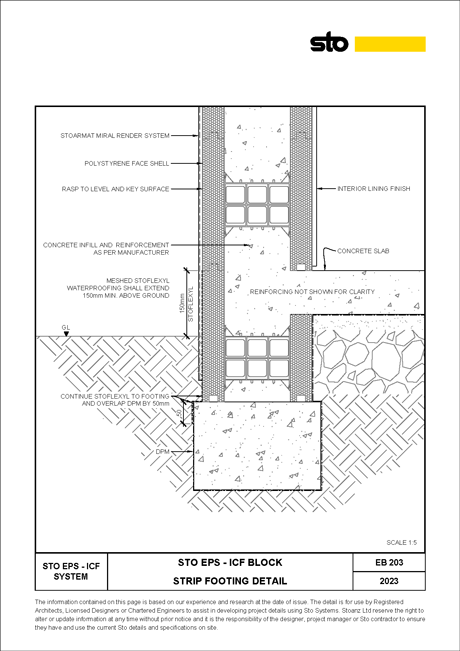

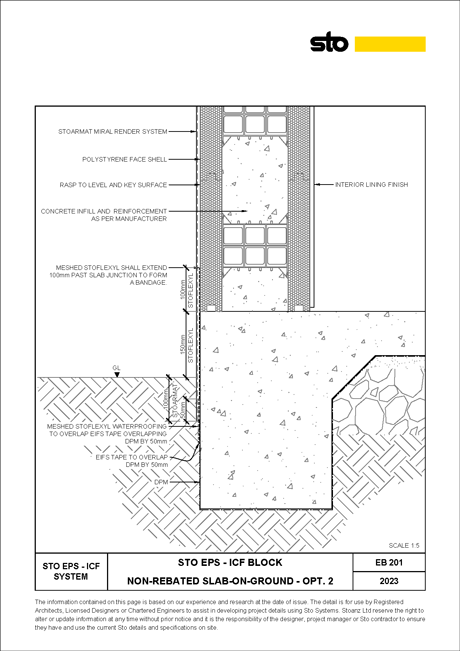

EB-201

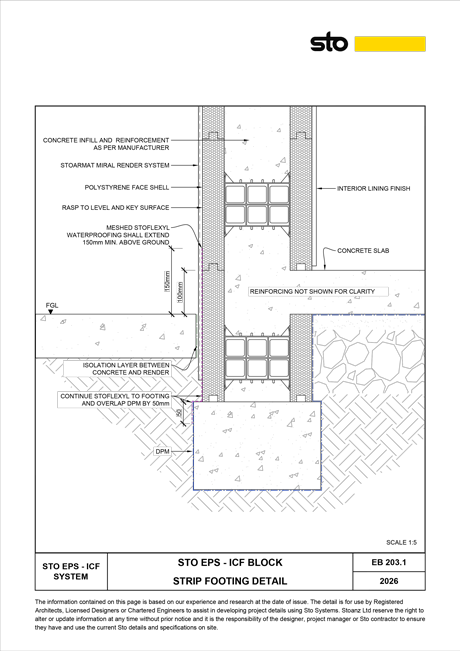

Sto EPS/ICF Block - Strip Footing
DWGPDF
EB-202
Sto EPS/ICF Block - Thickened edge
DWGPDF
EB-203
Sto EPS/ICF Block - Basement
DWGPDF
EB-204

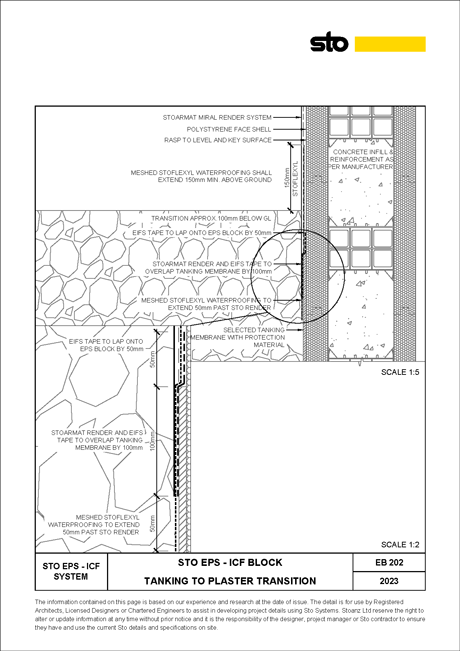

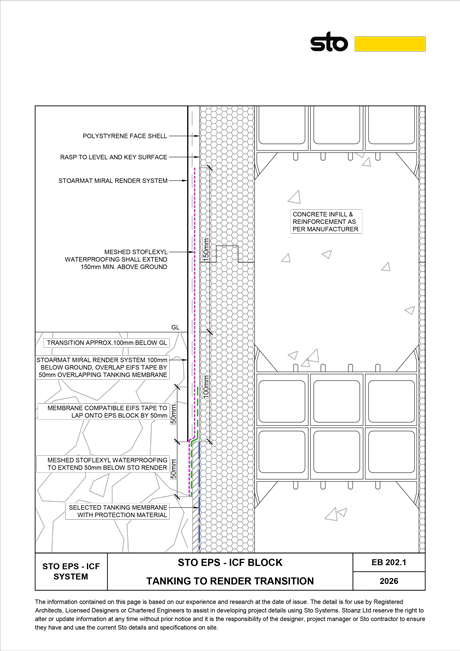

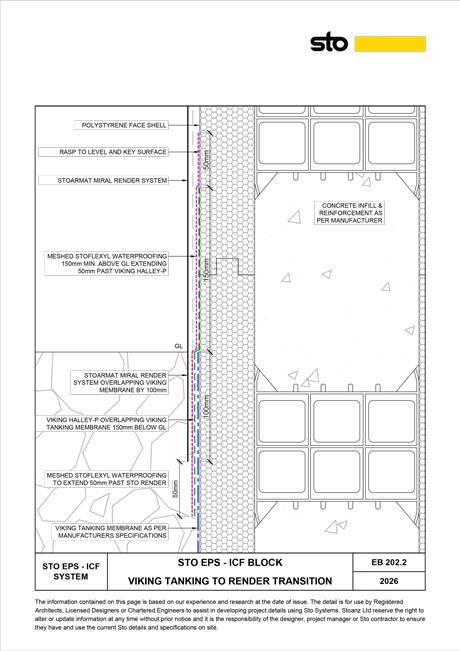

Sto EPS/ICF Block - Tanking to Plaster Transition
DWGPDF



Walls Series 300

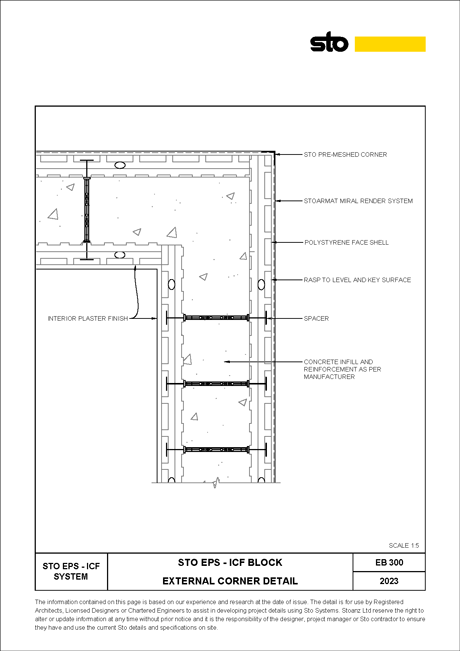

EB-300
Sto EPS/ICF Block - External Corner
DWGPDF

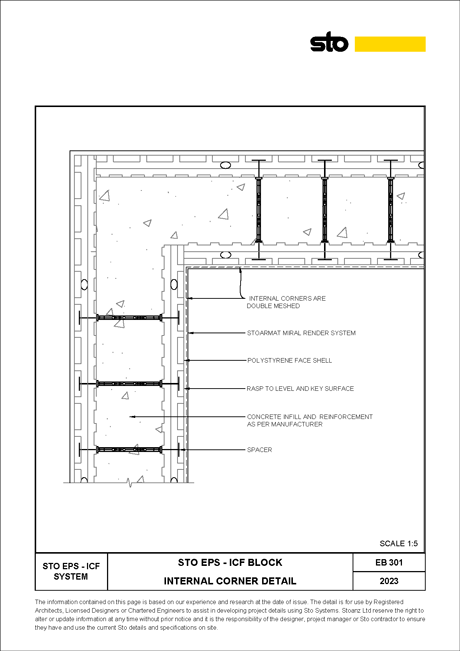

EB-301
Sto EPS/ICF Block - Internal Corner
DWGPDF

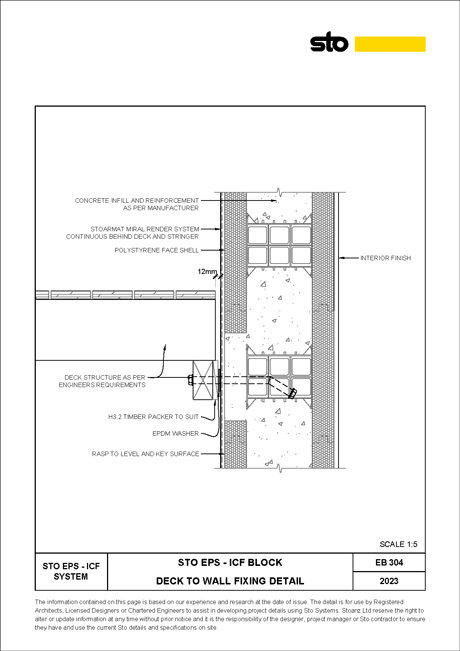

EB-302
Sto EPS/ICF Block - Wall Fixing to Deck
DWGPDF
EB-303

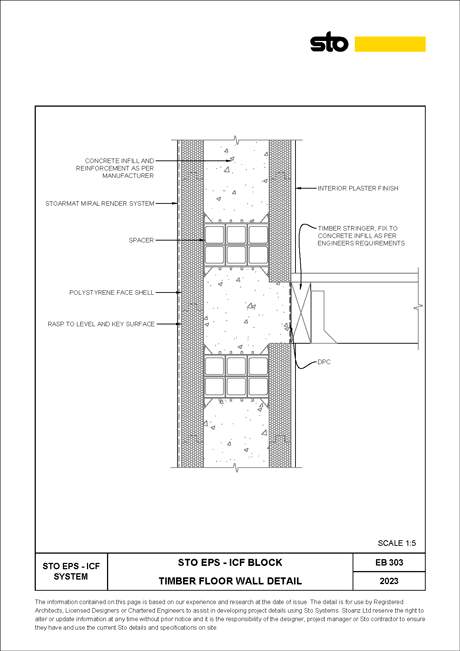

Sto EPS/ICF Block - Timber Floor/Wall Detail
DWGPDF
EB-304
Sto EPS/ICF Block - Timber Floor/Wall Detail (parallel to wall)
DWGPDF
EB-305

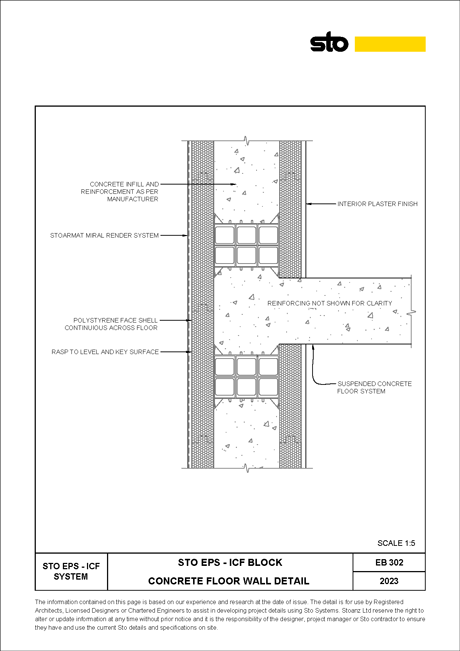

Sto EPS/ICF Block - Concrete Floor/Wall Detail
DWGPDF



Wall Penetrations & Fittings Series 350



EB-350

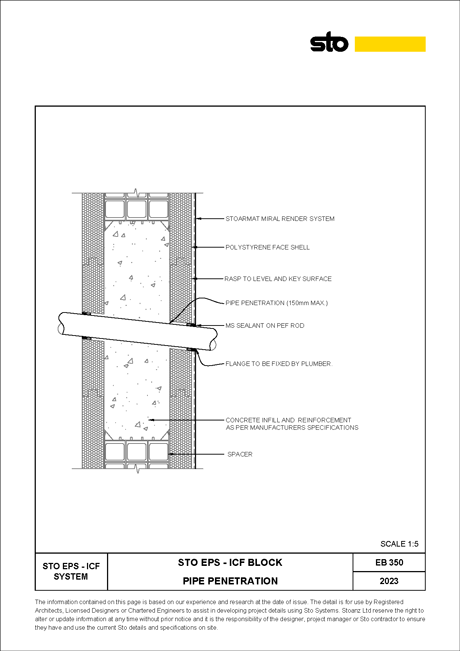

Sto EPS/ICF Block Pipe Penetration (up to 150mm Dia) Detail
DWGPDF
EB-351
Sto EPS/ICF Block Meterbox
DWGPDF

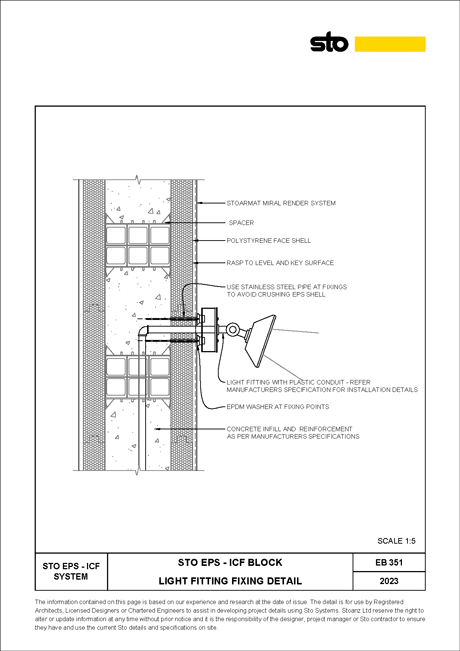

EB-352
Sto EPS/ICF Block Light Fitting/Fixing Detail
DWGPDF

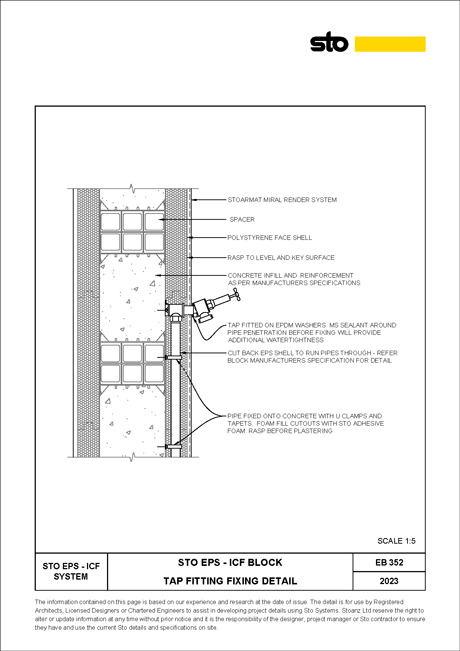

EB-353
Sto EPS/ICF Block Tap Fitting/Fixing Detail
DWGPDF
EB-354

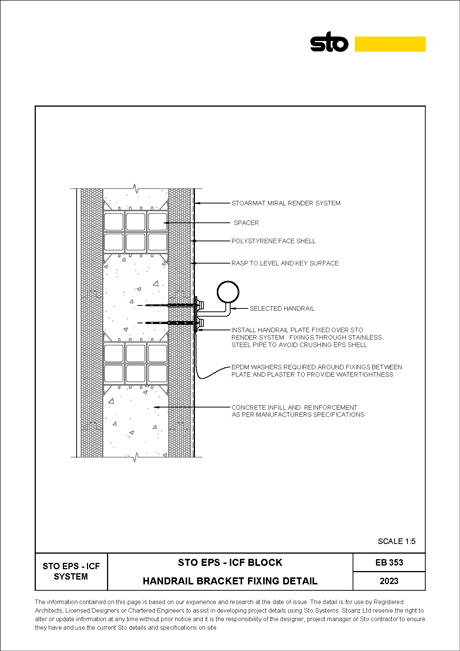

Sto EPS/ICF Block Handrail Bracket/Fixing Detail
DWGPDF

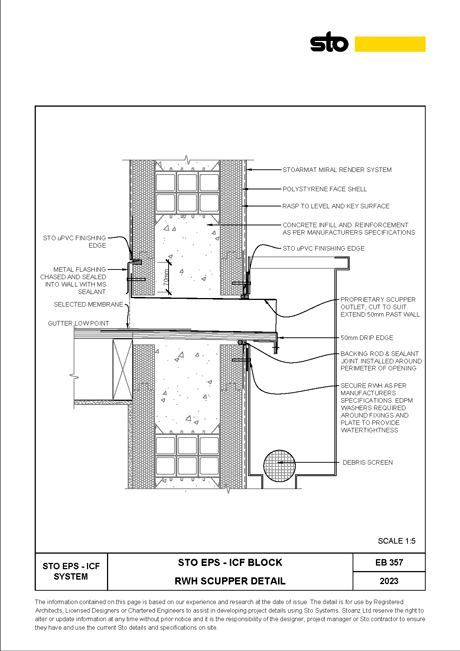

EB-355

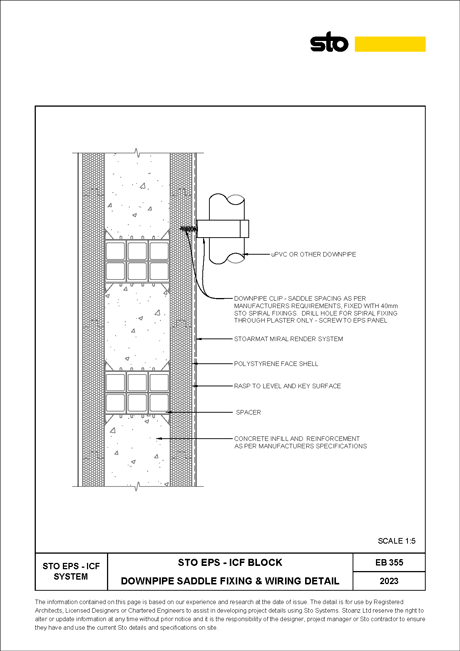

Sto EPS/ICF Block Downpipe Saddle Fixing & Wiring Detail
DWGPDF

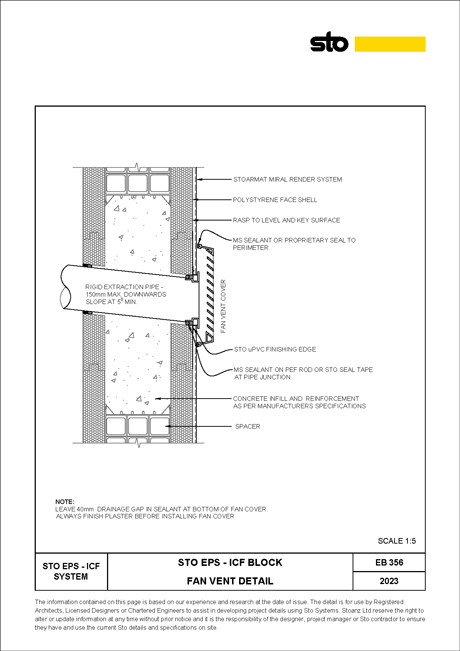

EB-356
Sto EPS/ICF Block Fan Vent Detail
DWGPDF



Joinery Series 400

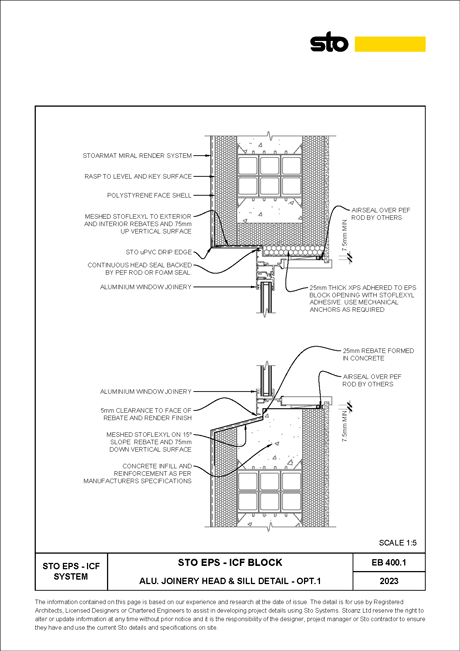

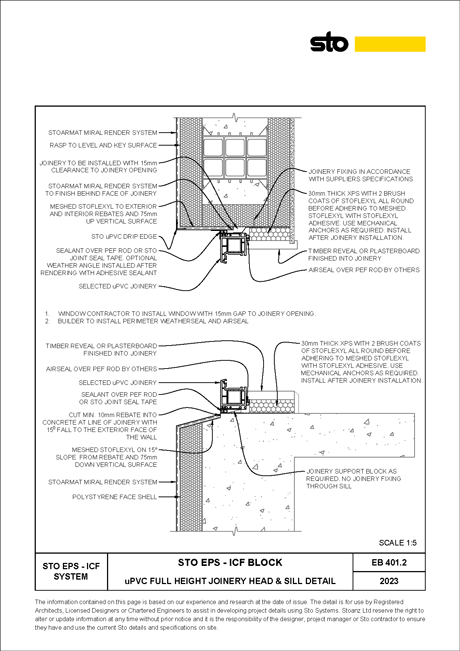

EB-400

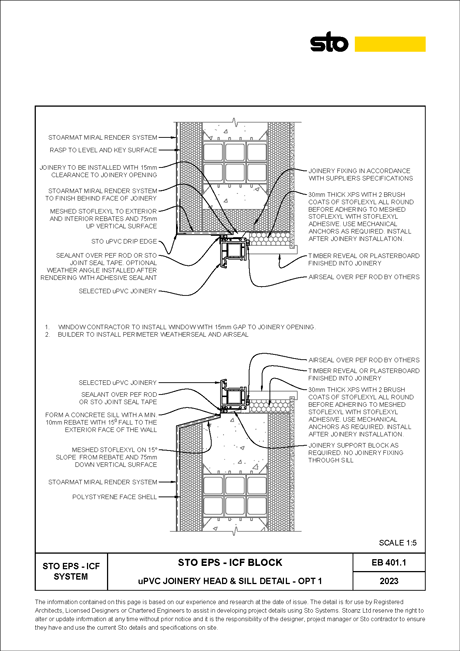

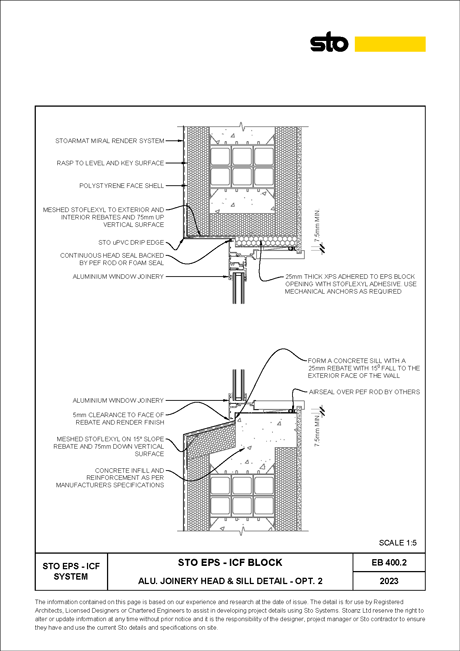

Sto EPS/ICF Block Alu.Joinery Head and Sill Detail
DWGPDF

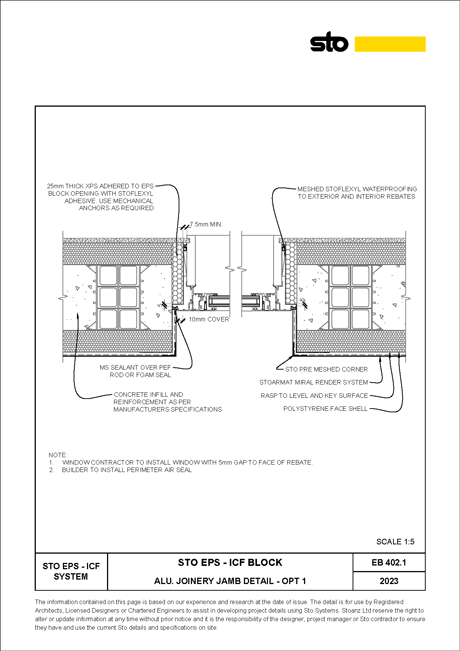

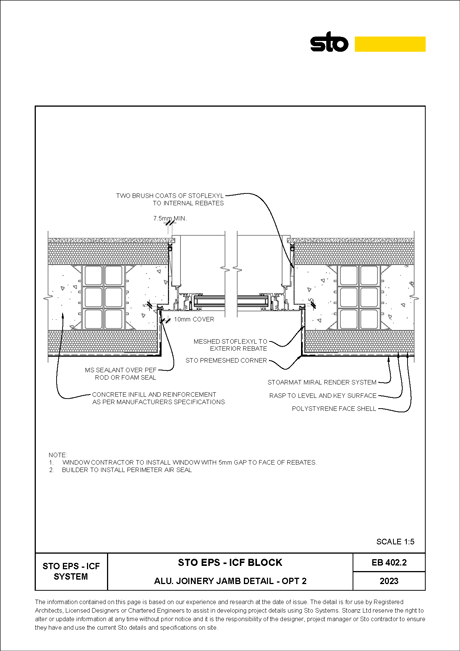

EB-401

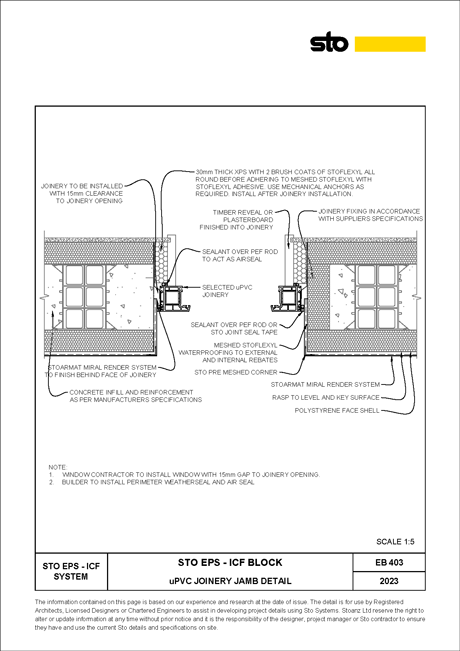

Sto EPS/ICF Block Alu.Jamb Detail
DWGPDF
EB-402
Sto EPS/ICF Block Timber Door Head Detail
DWGPDF
EB-403
Sto EPS/ICF Block Timber Door Jamb Detail
DWGPDF
EB-404
Sto EPS/ICF Block Timber Window Head and Sill Detail
DWGPDF
EB-405
Sto EPS/ICF Block Timber Window Jamb Detail
DWGPDF
EB-406
Sto EPS/ICF Block for Solid Masonry Rebates
DWGPDF
EB-407
Sto EPS/ICF Block for Arched Openings
DWGPDF



Parapets, Balustrades, Decks Series 500

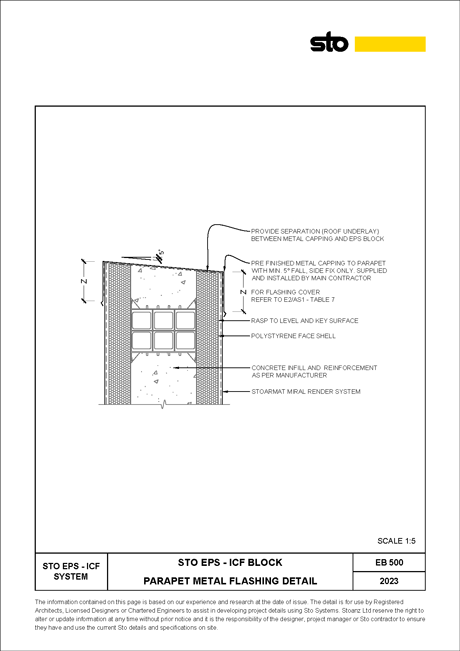

EB-500
Sto EPS/ICF Block Parapet - Metal Flashing Detail
DWGPDF
EB-501
Sto EPS/ICF Block Plastered Parapet/Balustrade Detail
DWGPDF

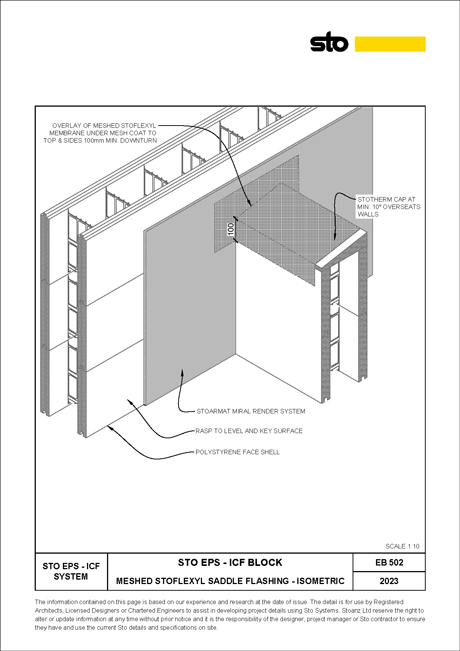

EB-502
Sto EPS/ICF Block Balustrade/Parapet to Wall
DWGPDF

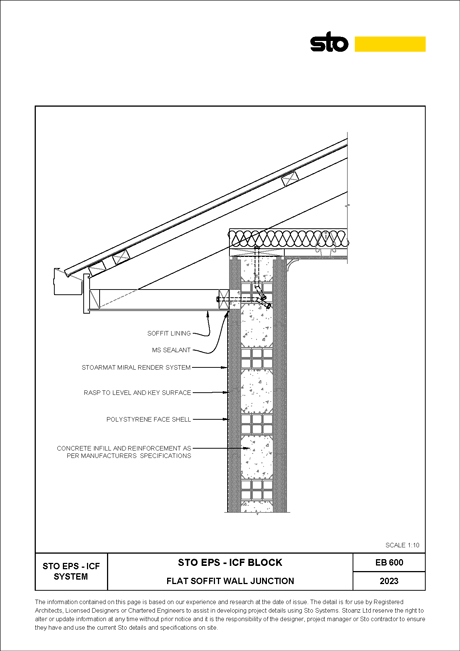

Soffit Series 600 series not issued





Roof Series 700



EB-700
Sto EPS/ICF Block Typical Eaves Detail
DWGPDF
EB-701
Sto EPS/ICF Block Reverse Slope Eaves Detail
DWGPDF

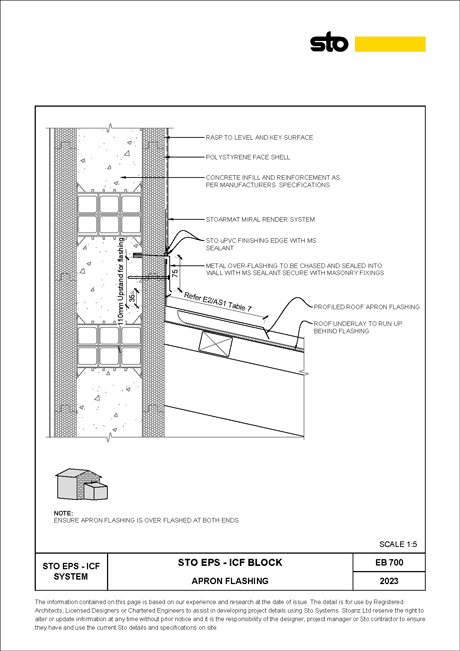

EB-702

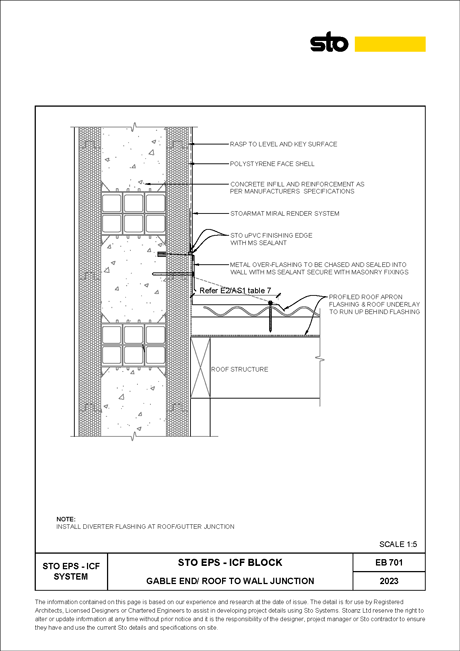

Sto EPS/ICF Block Gable End / Roof Junction
DWGPDF





Dissimilar Material series not issued
Weatherboard Series 800 series not issued
Brick Series 810 series not issued
Fibre Cement Sheet Series 820 series not issued
Manufactured Stone - Schist & Natural Stone Series 840 series not issued
Profile Metal Series 850 series not issued
DISSIMILAR JOINERY Series 870 series not issued



Click here to hide details.








Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated February 2017
