StoSilent Panel
External Insulating Systems
StoSilent Panel is a suspended ceiling cavity and wall acoustic panel system
made of 98% recycled glass granulate.
StoSilent Panel can be used internally in commercial and private dwellings on ceilings and wall surfaces above contact height, swimming pool ceilings; sheltered exterior surfaces; entertainment centres; transport terminals; and other recreational facilities.
Features of the StoSilent Panel include seamless installation over areas of up
to 200 m2 (maximum length 20 linear metres); high mean sound absorption of up to 80 % NRC; low weight with high rigidity and robustness; moisture resistantance; and compliance with class B1 limited combustibility (in accordance with DIN 4102 and BS 476 part 6 & 7 -
a non-combustible sheet is available on request)
The form and structure of the StoSilent Panel, it can be used on flat surfaces, free-hanging elements, stepped structures and curves. StoClimasan Color can be used as a photocatalyst finish to refresh the air in public areas without limiting the acoustic performance of StoSilent Panel.
Download brochures for your electronic reference or product library.
StoSilent Panel
StoSilent Panel is installation friendly with low weight easy-to-work-with large format panels. A perfectly co-ordinated set of system components erected by trained professionals ensures satisfaction with the finished product.

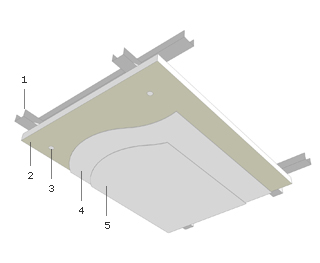

Click on each of the layers to the left to see the components of the StoSilent Panel System.
01
Galvanised Steel suspended ceiling grid
02
StoSilent Panel
03
Acoustic Panel Fixings
04
Acoustic Base Plaster
05
StoSilent Top
A smooth finish render;
or
StoSilent SuperFein
A sprayed fine grain texture.Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.
Last updated July 2011
