StoTherm Masonry Insulation


Insulation Systems for Concrete Masonry, In-situ or Pre-cast Concrete Walls



Overview

StoTherm Masonry Insulation is an exterior insulation finishing system (EIFS) for concrete masonry, in-situ or pre-cast concrete walls. Consisting of 40 to 100mm and over thick EPS StoTherm Panels or StoTherm+ Panels which increase R-values by up to a further 20% for better energy efficiency and savings.



Sto, a world leader in manufacturing insulated render systems has provided over 150 million square metres of insulated cladding to date and has been tried and tested in every climate around the world for proven insulation performance.






Brochure

Brochure
StoTherm Masonry - Energy-efficiency
PDF
Brochure
StoTherm Mineral Insulation -
A non-combustible, mineral-wool insulation system for fire protection
PDF












Gallery

Click here for additional photos. Click on a thumbnail for a larger image.



Copthorne Hotel Auckland StoTherm Masonry - Victoria StoTherm masonry - Wanaka StoTherm-BookHouse-Wellington



StoTherm Masonry - Red Cliffs, Christchurch StoTherm Masonry Image 1 StoTherm masonry Image 2 StoTherm Masonry Image 3
StoTherm Masonry Image 4 StoTherm Masonry Image 5 StoTherm Masonry Image 6 StoTherm Masonry Image 7
StoTherm Masonry Image 8 StoTherm Masonry Image 5 StoTherm Masonry Image 10 StoTherm Masonry Image 11
StoTherm Masonry Image 12



Click here to hide images.












Benefits at a glance

StoTherm is one of the world's most successful facade insulation systems. As the first exterior insulation finishing system (EIFS), it was developed from the outset with a focus on safety and long-term material behaviour and has since been continually improved. StoTherm has one of the lowest complaint rates thanks to its high system reliability and durability.



  • BRANZ Appraised
  • 15 to 20 year warranty with maintenance schedule
  • External dew point
  • Combats condensation and mould
  • Designed with minimal thermal conductivity and thermal bridging
  • Complete installation and supply by Sto registered LBP contractor
  • Easy to cut and detail plus easy assembly
  • Very high crack resistance
  • Highly weather-resistant
  • StoFlexy meshed waterproofing for horizontal surfaces and foundations
  • Breathable and vapour permeable
  • Existing and new buildings up to high-rise level





stotherm bend test

Crack resistance of external wall insulation systems

stotherm crack resistance












StoTherm Armat Insulation System

StoTherm Armat is a BRANZ appraised insulation and render system installed on a variety of masonry substrates, consisting of EPS StoTherm Insulation Panels fixed with anchors which avoid thermal bridging.



The StoTherm panels are basecoat to straighten any irregularities. Followed by StoArmat render and glass fibre mesh, providing engineered reinforcement to reliably dissipate tensile, seismic and shear stress. Finished with perfectly interlocking components: Stolit fibre-reinforced coloured finishing render plus StoColor; creating a 4mm weather tight reinforcement system for reliability and protection that surpasses the facade durability requirements.



Installations are carried out by a Sto Registered Licensed Building Practitioner with the added protection of a StoArmat 15 or 20+ Year Warranty and StoService Assurance, guaranteeing building code compliant materials are used and application meets building code standards, including a service plan for long-term security.









StoTherm Armat Insulation Construction
Click on each of the layers below to view the components of the system.





Component Builder stotherm_masonry_system_130 stotherm_masonry_system_130 stotherm_masonry_system_130 stotherm_masonry_system_110 stotherm_masonry_system_120 stotherm_masonry_system_140 stotherm_masonry_system_150 stotherm_masonry_system_160 stotherm_masonry_system_150 stotherm_masonry_system_170 stotherm_masonry_system_180



01

Adhesive: Gluecoat Mortar



02

Insulation: Expanded Polystyrene Sheet

60/100mm "S" grade self-extinguishing sheet, manufactured to AS 1366 Part 3 by an approved manufacturer.



poly

03

Sto Therm Anchor

Anchors are installed countersunk and capped with ST Insulation Cap to avoid thermal bridging.



stotherm_video



Click here to view the procedure.



04

Basecoat: StoLevell Novo / LevelLite Mineral Render

Lightweight EPS bead mineral render (plaster) with good build properties, water retention agents and machine application properties.



levelite



05

Reinforcement Render: StoArmat

European manufactured. High flexibility, crack resistance of six times higher then that of cement based products plus durability against mechanical stress ensure the highest system reliability render (plaster) available. contains no cement.



sto bucket    stoarmat bend test



06

Plus: Sto European mesh 4/7mm

Easy to install, meets the highest requirements for crack, stress and alkalinity resistance.



mesh



07

Finishing Render: Stolit Range

European manufactured and certified, organically bound, strong, hard wearing, impact resistant, pre coloured finishing renders. (No cement)



Stolit K Range

Stolit MP & MP Natural

Stolit Milano



plaster bucket



08

Coating:

StoColor coating based on IQ Net Technology for functional facades.



StoColor Lotusan

StoColor X-black

StoColor Maxicryl

StoColor Lastic



sto-bucket



branz appraisal

BRANZ Appraisal 604 (2008)

sto warranty

StoArmat 15 or 20+ Year Warranty with StoService Assurance












Finishes

Stolit: Coloured Finishing Renders

Stolit organic finishing renders are manufactured in Germany incorporating the latest technology; certified globally and successfully applied to rendered substrates in every climatic zone for over 50 years.



The Stolit range provides the perfect combination of properties: durable, strong, hard-wearing, impact-resistant, malleable, weather-resistant, colour-stable and highly resistant to microorganisms. In addition, its vapour permeability allows your building to breathe while still repelling water.





Coloured Self-Gauging Float Finish Renders:

StolitK 1.0mm StolitK 1.5mm StolitK 2.0mm StolitK 3.0mm

Stolit K 1.0mm

Stolit K 1.5mm

Stolit K 2.0mm

Stolit K 3.0mm



Coloured Fine Float, Sponge, or Light Adobe Finish Renders:

StolitK MP StolitK MP Natural Stolit Milano

Stolit MP

Stolit MP Natural

Stolit Milano












Facade Paints

The StoColor finish, a serviceable coating embodying intelligent technology for a range of surface functions to compliment the architectural structure and design. The StoColor System, with 800 shades or matched to any colour using the Sto Spectrometer, provides a clear framework and systematic approach to colour based on integrated layers, combining texture and colour for aesthetic appeal.





Product

StoColor Lotusan
The tried-and-tested facade paint with patented Lotus-Effect® technology for facades that stay clean for longer.

StoColor X-black
Strong colours for cool facades. Matt finish facade paint for dark coloured facades.

StoColor Maxicryl
Acrylic facade paint with high covering power for a natural look.

StoColor Lastic
Elastomeric durable facade paint.



Sto Paint








TDS / MSDS

sto detail expand



Download a TDS or MSDS



Primers / Sealers:



TDS / MSDS
Sto Flexyl
PDF PDF



Reinforcement Mesh:



TDS
StoMesh 4mm
PDF
TDS
StoMesh 7mm
PDF



Reinforcement Render / Base Render:



TDS / MSDS
StoLevell Novo
PDF PDF
TDS / MSDS
LevelLite Mineral Render
PDF PDF
TDS / MSDS
Multiscreed 6/8 mm
PDF PDF
TDS / MSDS
StoArmat Render
PDF PDF



Finishing Renders:



TDS / MSDS
Stolit K 1.0mm
PDF PDF
TDS / MSDS
Stolit K 1.5mm
PDF PDF
TDS / MSDS
Stolit K 2.0mm
PDF PDF
TDS / MSDS
Stolit K 3.0mm
PDF PDF
TDS / MSDS
Stolit MP & MP Natural
PDF PDF
TDS / MSDS
Stolit Milano
PDF PDF



Coatings:



TDS / MSDS
StoColor X-black
PDF PDF
TDS / MSDS
StoColor Lotusan
PDF PDF
TDS / MSDS
StoColor Maxicryl
PDF PDF
TDS / MSDS
StoColor Lastic
PDF PDF




Specifications & BRANZ Appraisal

sto detail expand



Download an Editable Specification

Please register all completed Sto specifications to [email protected] to ensure project confirmation and Sto warranty.



SS-205
StoTherm Vario Masonry Rendered Insulation System
Specification Icon
SS-205F
StoTherm Vario Masonry Foundation Insulation System
Specification Icon
SS-206
StoTherm Armat Masonry Rendered Insulation System
Specification Icon
SS-206F
StoTherm Armat Masonry Foundation Insulation System
Specification Icon
SS-206R
StoTherm Armat Masonry Refurbishment System
Specification Icon





Download a BRANZ Appraisal



BRANZ Appraisal
StoTherm Masonry Insulation System - 604 (2008)
Branz Appraisal




CAD or PDF details

sto detail expand



Download a Detail Set



STM-ALL
StoTherm Masonry Insulation - Complete Detail Set 2017 (3.1mb)
PDF
STMI-ALL
StoTherm Mineral Insulation - Complete Detail Set 2017 (2.5mb)
PDF
BIM
Revit Wall Structure Files
PDF





StoTherm Masonry Insulation - Individual Details

sto detail expand



Drawing Register and Introduction Series 000

sto detail expand
STM-000-All
Introduction Series 000 - Complete Set
PDF
STM-001-2
Drawing Register
DWGPDF
STM-003
StoTherm Masonry Insulation System - Introduction
DWGPDF



Block Layout Series 100

sto detail expand
STM-100-All
Block Layout Series 100 - Complete Set
PDF
STM-100

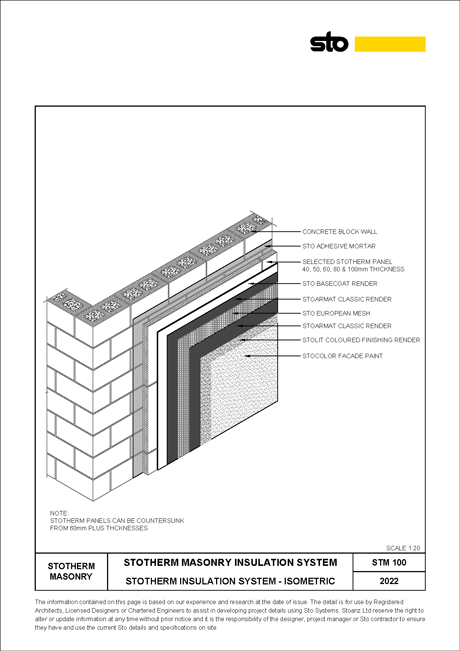

StoTherm Masonry Insulation System - Isometric
DWGPDF
STM-101
StoTherm Masonry Insulation Panel Layout - Elevation
DWGPDF
STM-102
StoTherm Masonry Insulation Anchor Layout - Elevation
DWGPDF
STM-103
StoTherm Masonry Insulation Masonry Fixing
DWGPDF



Foundation Series 200

sto detail expand
STM-200-All
Foundation Series 200 - Complete Set
PDF
STM-200
StoTherm Masonry Insulation System Wall/Footing Junction
DWGPDF
STM-201
StoTherm Masonry Insulation System Below Ground Insulation
DWGPDF



Wall Series 300

sto detail expand
STM-300-All
Walls Series 300 - Complete Set
PDF
STM-300
StoTherm Masonry Insulation System External Corner
DWGPDF
STM-301
StoTherm Masonry Insulation System Internal Corner
DWGPDF
STM-302
StoTherm Masonry Insulation System Control Joint Detail
DWGPDF
STM-303
StoTherm Masonry Insulation System Stair Waterproofing Detail
DWGPDF



Wall Penetrations & Fittings Series 350

sto detail expand
STM-350-All
Wall Penetrations & Fittings Series 350 - Complete Set
PDF
STM-350
StoTherm Masonry Insulation System Pipe Penetration (up to 150mm Ø) Detail
DWGPDF
STM-351
StoTherm Masonry Insulation System Meterbox details
DWGPDF
STM-352
StoTherm Masonry Insulation System Light Fitting/Fixing Detail
DWGPDF
STM-353
StoTherm Masonry Insulation System Tap Fitting/Fixing Detail
DWGPDF
STM-354
StoTherm Masonry Insulation System Handrail Bracket/Fixing Detail
DWGPDF
STM-355
StoTherm Masonry Insulation System Downpipe Saddle Fixing
DWGPDF
STM-356
StoTherm Masonry Insulation System Fan Vent Detail
DWGPDF



Joinery Series 400

sto detail expand
STM-400-All
Joinery Series 400 - Complete Set
PDF
STM-400
StoTherm Masonry Insulation System Alu.Joinery - Head & Sill Detail
DWGPDF
STM-401
StoTherm Masonry Insulation System Alu.Joinery - Jamb Detail
DWGPDF
STM-402
StoTherm Masonry Insulation System Timber Joinery - Head & Sill Detail
DWGPDF
STM-403
StoTherm Masonry Insulation System Timber Joinery - Jamb Detail
DWGPDF
STM-404
StoTherm Masonry Insulation System Alu.Entry Door Head & Threshold Detail
DWGPDF
STM-405
StoTherm Masonry Insulation System Timber Entry Door Head & Threshold Detail
DWGPDF
STM-406
StoTherm Masonry Insulation System 20mm insulation to rebate - Head & Sill Detail
DWGPDF
STM-407
StoTherm Masonry Insulation System 20mm insulation to rebate - Jamb Detail
DWGPDF
STM-408
StoTherm Masonry Insulation System 40mm insulation to rebate - Head & Sill Detail
DWGPDF
STM-409
StoTherm Masonry Insulation System 40mm insulation to rebate - Jamb Detail
DWGPDF



Parapets, Balustrades, Decks Series 500

sto detail expand
STM-500-All
Parapets, Balustrades, Decks Series 500 - Complete Set
PDF
STM-500
StoTherm Masonry Insulation System Parapet/Metal Flashing Detail
DWGPDF
STM-501
StoTherm Masonry Insulation System Rendered Balustrade Detail
DWGPDF
STM-502
StoTherm Masonry Insulation System Parapet/Roof/Wall Detail
DWGPDF
STM-503
StoTherm Masonry Insulation System Insulated Roof / Deck to Walls
DWGPDF



Soffits Series 600

sto detail expand
STM-600-All
Soffit Series 600 - Complete Set
PDF
STM-600
StoTherm Masonry Insulation System Flat Soffit
DWGPDF
STM-601
StoTherm Masonry Insulation System Raking Soffit
DWGPDF
STM-602
StoTherm Masonry Insulation System Raking Soffit (reversed)
DWGPDF
STM-603
StoTherm Masonry Insulation System Face Fixed Fascia
DWGPDF



Roof Series 700

sto detail expand
STM-700-All
Roof Series 700 - Complete Set
PDF
STM-700
StoTherm Masonry Insulation System Barge with Overhang
DWGPDF
STM-701
StoTherm Masonry Insulation System Parallel Apron Flashing at Parapet
DWGPDF
STM-702
StoTherm Masonry Insulation System Eaves with Overhang
DWGPDF
STM-703
StoTherm Masonry Insulation System Eaves without Overhang
DWGPDF
STM-704
StoTherm Masonry Insulation System Parallel Apron Flashing
DWGPDF
STM-705
StoTherm Masonry Insulation System Transverse Apron Flashing
DWGPDF
STM-706
StoTherm Masonry Insulation System Parallel Roof/Hidden Gutter
DWGPDF
STM-707
StoTherm Masonry Insulation Face Fixed Fascia/Membrane Roof
DWGPDF



Dissimilar Material Series 800

sto detail expand

Bevel-Back Weatherboard Series 800

sto detail expand
STM-800-All
Bevel-Back Weatherboard Series 800 - Complete Set
PDF

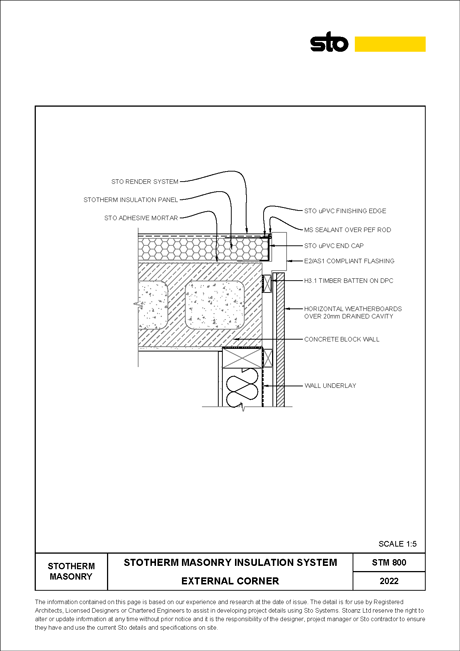

STM-800
StoTherm Masonry Insulation System Ext.Corner
DWGPDF
STM-801
StoTherm Masonry Insulation System Int.Corner
DWGPDF
STM-802
StoTherm Masonry Insulation System Horizontal Junction
DWGPDF

Brick Series 810 series not issued
Fibre Cement Sheet Series 820 series not issued
Manufactured Stone - Schist & Natural Stone Series 840 series not issued

Profile Metal Series 850

sto detail expand
STM-850-All
Profile Metal Series 850 - Complete Set
PDF
STM-850
StoTherm Masonry Insulation System Ext.Cnr Horiz.Profiled Metal
DWGPDF
STM-851
StoTherm Masonry Insulation System Int.Cnr Horiz.Profiled Metal
DWGPDF
STM-852
StoTherm Masonry Insulation System Horizontal Junction/Horiz.Profiled Metal
DWGPDF
STM-853
StoTherm Masonry Insulation System Ext.Cnr Vertical Profiled Metal
DWGPDF
STM-854
StoTherm Masonry Insulation System Int.Cnr Vertical Profiled Metal
DWGPDF
STM-855
StoTherm Masonry Insulation System Horizontal Junction/Vertical Profiled Metal
DWGPDF

Stotherm Panel EIFS 860 series not issued
Dissimilar Joinery Series 870 series not issued



Click here to hide details.





StoTherm Mineral Insulation - Individual Details

sto detail expand





Drawing Register and Introduction Series 000

sto detail expand
STMI-000-All
Introduction Series 000 - Complete Set
PDF
STMI-001-2
Drawing Register
DWGPDF
STMI-003
StoTherm Mineral Insulation System - Introduction
DWGPDF



Block Layout Series 100

sto detail expand
STMI-100-All
Block Layout Series 100 - Complete Set
PDF
STMI-100
StoTherm Mineral Insulation System - Isometric
DWGPDF
STMI-101
StoTherm Mineral Insulation Board Layout - Elevation
DWGPDF
STMI-102
StoTherm Mineral Insulation Anchor Layout - Elevation
DWGPDF
STMI-103
StoTherm Mineral Insulation Masonry Fixing
DWGPDF



Foundation Series 200

sto detail expand
STMI-200-All
Foundation Series 200 - Complete Set
PDF
STMI-200
StoTherm Mineral Insulation System Wall/Footing Junction
DWGPDF
STMI-201
StoTherm Mineral Insulation System Below Ground Insulation
DWGPDF



Wall Series 300

sto detail expand
STMI-300-All
Walls Series 300 - Complete Set
PDF
STMI-300
StoTherm Mineral Insulation System External Corner
DWGPDF
STMI-301
StoTherm Mineral Insulation System Internal Corner
DWGPDF
STMI-302
StoTherm Mineral Insulation System Control Joint Detail
DWGPDF
STMI-303
StoTherm Mineral Insulation System Stair Waterproofing Detail
DWGPDF



Wall Penetrations & Fittings Series 350

sto detail expand
STMI-350-All
Wall Penetrations & Fittings Series 350 - Complete Set
PDF
STMI-350
StoTherm Mineral Insulation System Pipe Penetration (up to 150mm Ø) Detail
DWGPDF
STMI-351
StoTherm Mineral Insulation System Meterbox
DWGPDF
STMI-352
StoTherm Mineral Insulation System Light Fitting/Fixing Detail
DWGPDF
STMI-353
StoTherm Mineral Insulation System Tap Fitting/Fixing Detail
DWGPDF
STMI-354
StoTherm Mineral Insulation System Handrail Bracket/Fixing Detail
DWGPDF
STMI-355
StoTherm Mineral Insulation System Downpipe Saddle Fixing
DWGPDF
STMI-356
StoTherm Mineral Insulation System Fan Vent Detail
DWGPDF



Joinery Series 400

sto detail expand
STMI-400-All
Joinery Series 400 - Complete Set
PDF
STMI-400
StoTherm Mineral Insulation System Alu.Joinery - Head & Sill Detail
DWGPDF
STMI-401
StoTherm Mineral Insulation System Alu.Joinery - Jamb Detail
DWGPDF
STMI-402
StoTherm Mineral Insulation System Timber Joinery - Head & Sill Detail
DWGPDF
STMI-403
StoTherm Mineral Insulation System Timber Joinery - Jamb Detail
DWGPDF
STMI-404
StoTherm Mineral Insulation System Alu.Entry Door Head & Threshold Detail
DWGPDF
STMI-405
StoTherm Mineral Insulation System Timber Entry Door Head & Threshold Detail
DWGPDF
STMI-406
StoTherm Mineral Insulation System 20mm Insulation to recess - Head & Sill Detail
DWGPDF
STMI-407
StoTherm Mineral Insulation System 20mm Insulation to recess - Jamb Detail
DWGPDF
STMI-408
StoTherm Mineral Insulation System 40mm Insulation to recess - Head & Sill Detail
DWGPDF
STMI-409
StoTherm Mineral Insulation System 40mm Insulation to recess - Jamb Detail
DWGPDF



Parapets, Balustrades, Decks Series 500

sto detail expand
STMI-500-All
Parapets, Balustrades, Decks Series 500 - Complete Set
PDF
STMI-500
StoTherm Mineral Insulation System Parapet/Metal Flashing Detail
DWGPDF
STMI-501
StoTherm Mineral Insulation System Rendered Balustrade Detail
DWGPDF
STMI-502
StoTherm Mineral Insulation System Parapet/Roof/Wall Detail
DWGPDF
STMI-503
StoTherm Mineral Insulation System Insulated Roof / Deck to Walls
DWGPDF



Soffits Series 600

sto detail expand
STMI-600-All
Soffit Series 600 - Complete Set
PDF
STMI-600
StoTherm Mineral Insulation System Flat Soffit
DWGPDF
STMI-601
StoTherm Mineral Insulation System Raking Soffit
DWGPDF
STMI-602
StoTherm Mineral Insulation System Raking Soffit (reversed)
DWGPDF
STMI-603
StoTherm Mineral Insulation System Face Fixed Fascia
DWGPDF



Roof Series 700

sto detail expand
STMI-700-All
Roof Series 700 - Complete Set
PDF
STMI-700
StoTherm Mineral Insulation System Barge with Overhang
DWGPDF

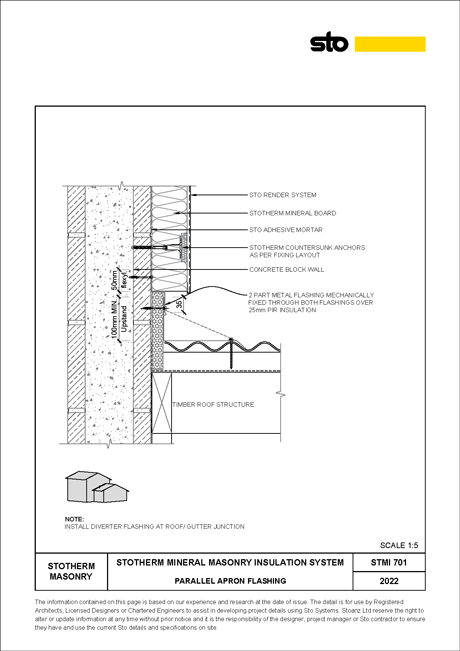

STMI-701
StoTherm Mineral Insulation System Parallel Apron flashing at Parapet
DWGPDF
STMI-702
StoTherm Mineral Insulation System Eaves with Overhang
DWGPDF
STMI-703
StoTherm Mineral Insulation System Eaves without Overhang
DWGPDF
STMI-704
StoTherm Mineral Insulation System Parallel Apron Flashing
DWGPDF
STMI-705
StoTherm Mineral Insulation System Transverse Apron Flashing
DWGPDF
STMI-706
StoTherm Mineral Insulation System Parallel Roof/Hidden Gutter
DWGPDF
STMI-707
StoTherm Mineral Insulation Face Fixed Fascia/Membrane Roof
DWGPDF



Dissimilar Material Series 800

sto detail expand

Bevel-Back Weatherboard Series 800

sto detail expand
STMI-800-All
Bevel-Back Weatherboard Series 800 - Complete Set
PDF
STMI-800
StoTherm Mineral Insulation System Ext.Corner
DWGPDF
STMI-801
StoTherm Mineral Insulation System Int.Corner
DWGPDF
STMI-802
StoTherm Mineral Insulation System Horizontal Junction
DWGPDF

Brick Series 810 series not issued
Fibre Cement Sheet Series 820 series not issued
Manufactured Stone - Schist & Natural Stone Series 840 series not issued

Profile Metal Series 850

sto detail expand
STMI-850-All
Profile Metal Series 850 - Complete Set
PDF
STMI-850
StoTherm Mineral Insulation System Ext.Cnr Horiz.Profiled Metal
DWGPDF
STMI-851
StoTherm Mineral Insulation System Int.Cnr Horiz.Profiled Metal
DWGPDF
STMI-852
StoTherm Mineral Insulation System Horizontal Junction/Horiz.Profiled Metal
DWGPDF
STMI-853
StoTherm Mineral Insulation System Ext.Cnr Vertical Profiled Metal
DWGPDF
STMI-854
StoTherm Mineral Insulation System Int.Cnr Vertical Profiled Metal
DWGPDF
STMI-855
StoTherm Mineral Insulation System Horizontal Junction/Vertical Profiled Metal
DWGPDF

Stotherm Panel EIFS 860 series not issued
Dissimilar Joinery Series 870 series not issued



Click here to hide details.







Disclaimer: These drawings have been issued as a guideline. The sequence work covers various building components, each trade is responsible to ensure their elements are fully installed, including all waterproofing / sealant / flashings as is applicable.

Last updated September 2017
